Sandy Aramid Mesh Method Sheet
By affixing this sheet to the inner surface of the formwork before casting concrete, the sheet positions itself near the surface of the concrete, thanks to its sand grain size, which ensures an appropriate cover thickness. Its lightweight, high strength, and durability help prevent concrete delamination and control surface cracking.
Features
High Durability

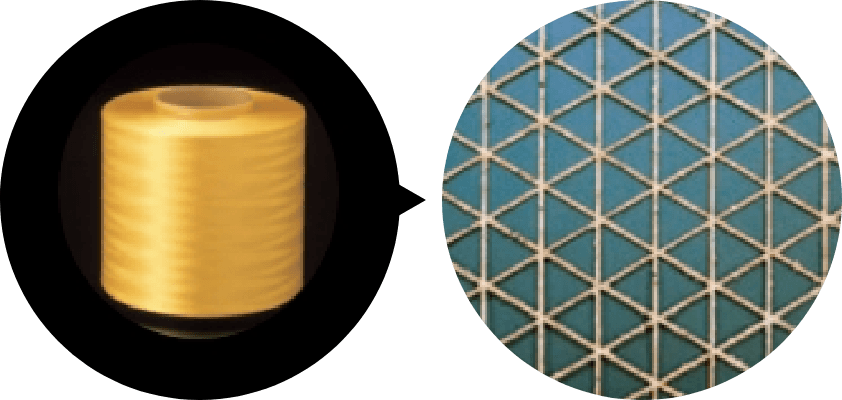

Using Technora™ developed with Teijin Limited’s proprietary technology, this product offers high strength and high elasticity, as well as excellent heat and chemical resistance. Its superior resistance to rust also helps reduce the need for regular maintenance, making it ideal for concrete reinforcement.
Ease of installation

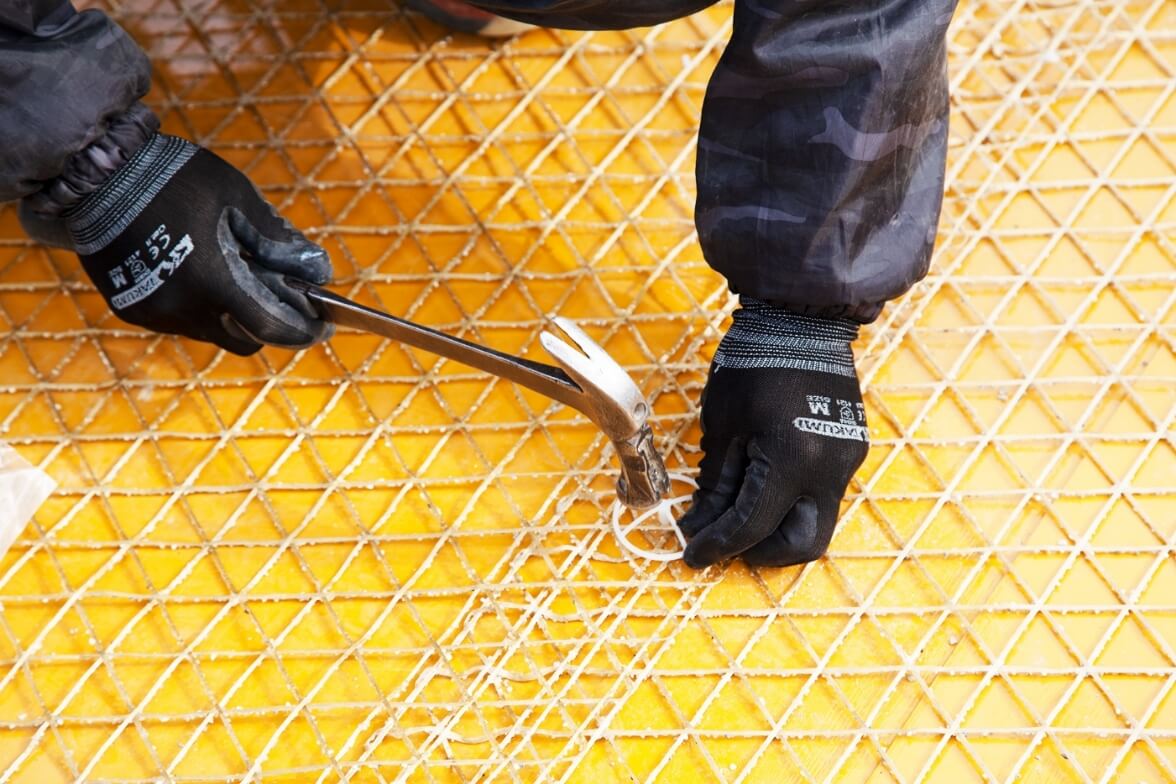

Because this product is lightweight and easy to install, it does not require specialized technicians. Installation can be performed only in areas where spalling prevention is necessary, optimizing both efficiency and cost. The sheet form allows for slitting and cutting as needed, enabling flexible, site-specific application to meet diverse project requirements.
Product Spec
Utilizing Technora™ developed with Teijin Limited’s proprietary technology, this product achieves high strength.
- Product width
- 1,240mm to 1,260mm (Approx. 4.07ft to 4.13ft)
- Product length
- 50m
- Product weight
- ≧400 g/m2 (≧1.3 oz/sf)
- Thread tensile strength
- ≧740 N/pc (≧166 lbs/pc)
Applications

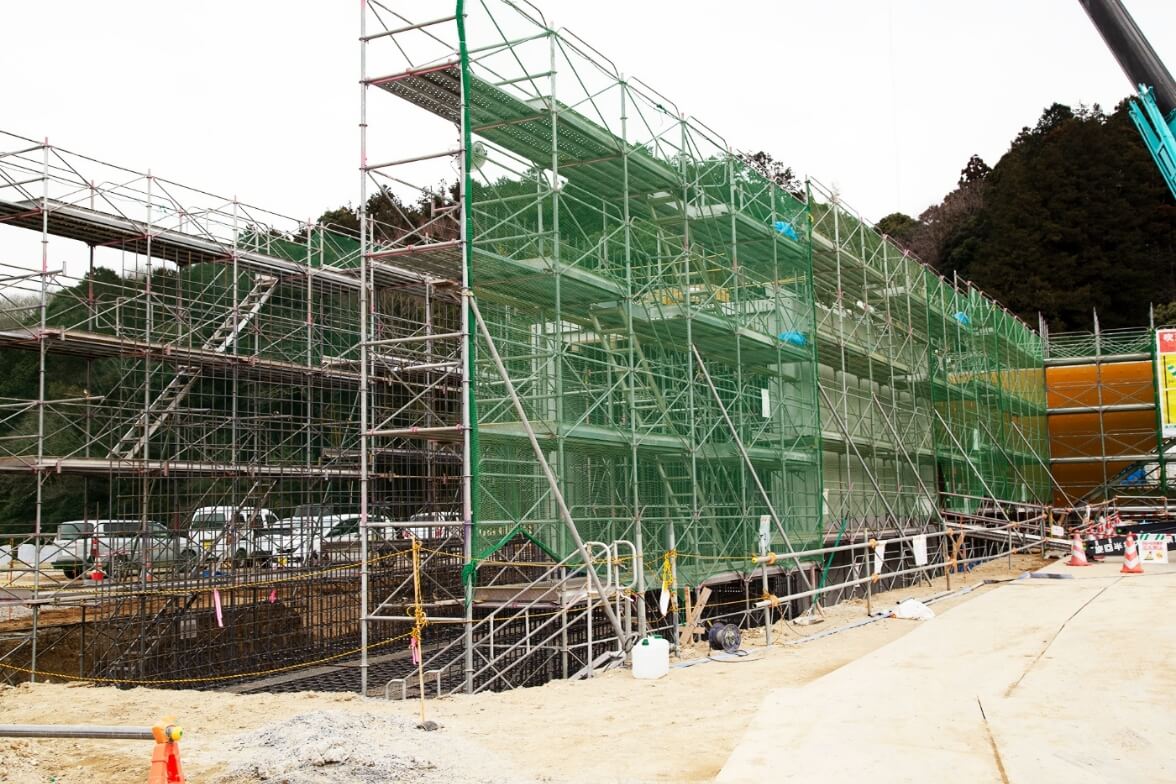

Our products have been adopted for new bridges by the Ministry of Land, Infrastructure, Transport and Tourism, as well as by local governments, and are used in highway bridges, tunnels, and box culverts. From 2000 through the end of March 2024, they have been installed in a total area exceeding 4.9 million square meters.

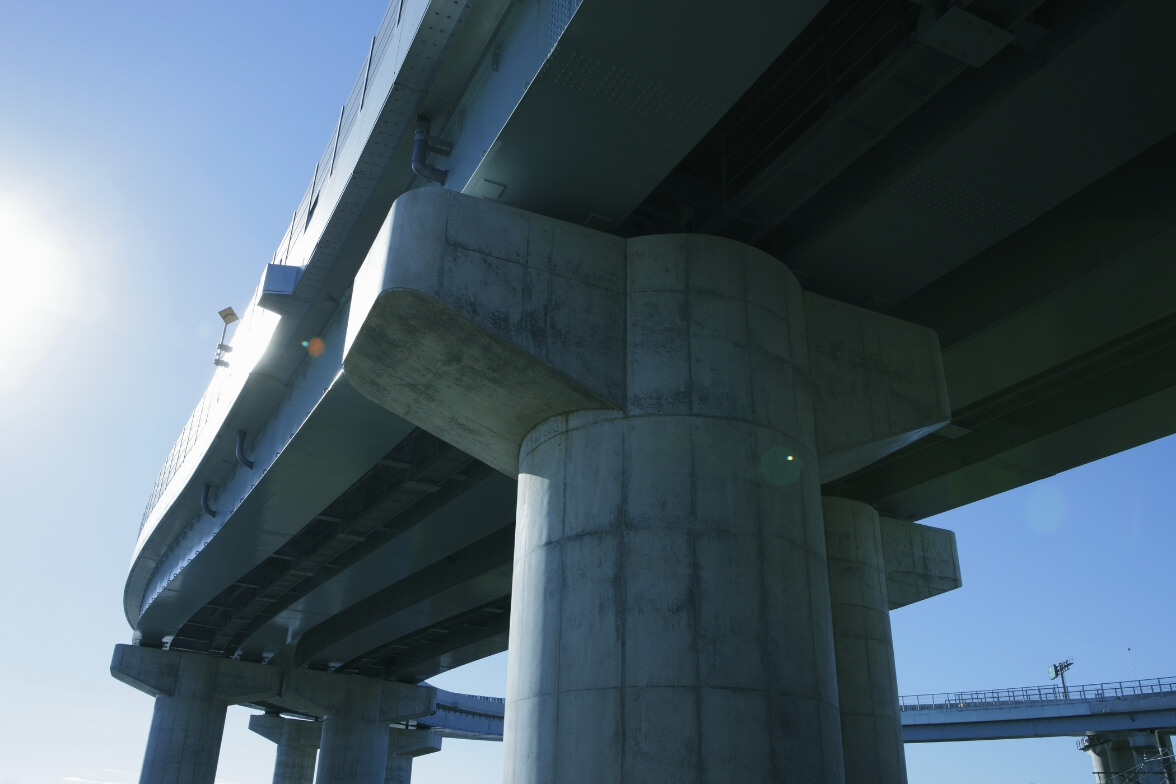

- Highway bridges

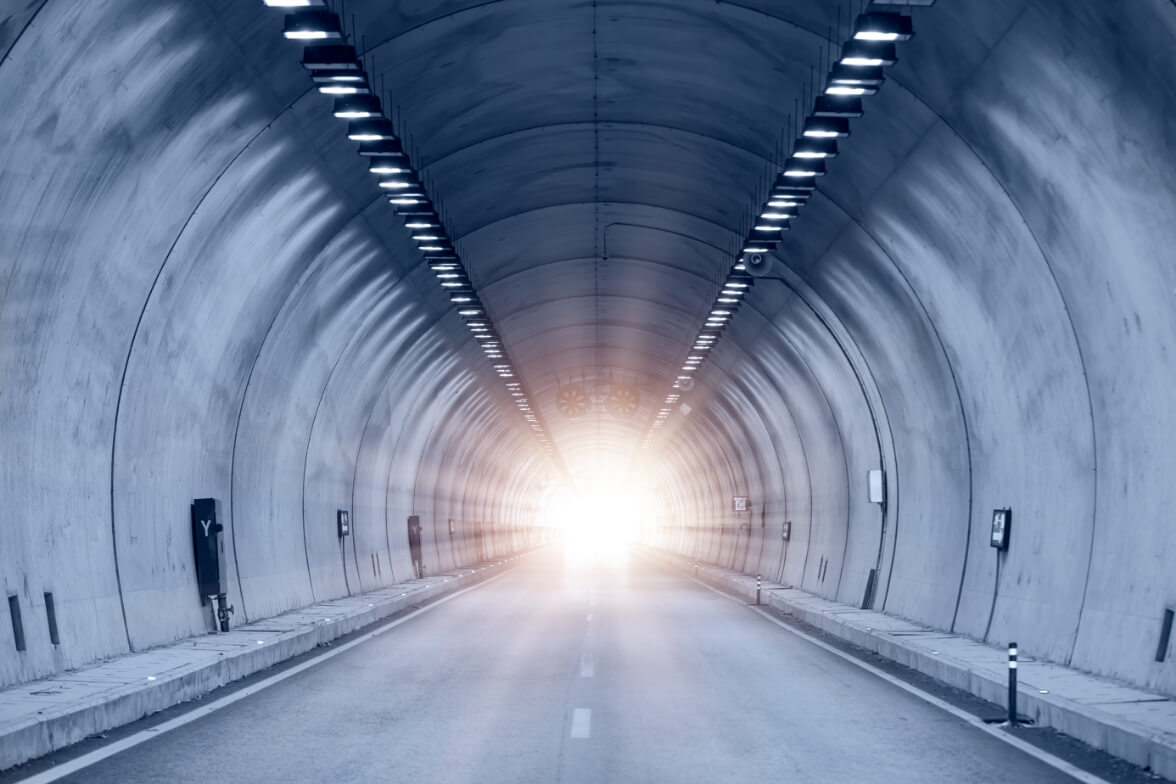

- Tunnels
- Box culverts
